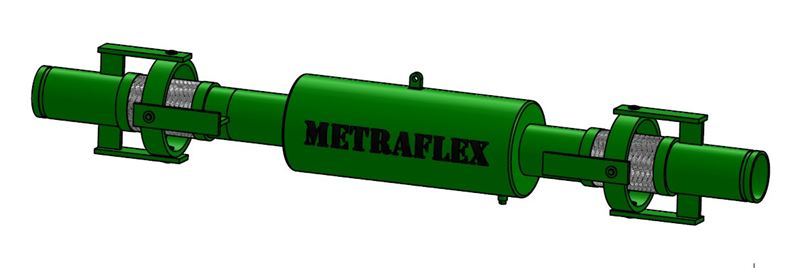

  • Seismic Gator With Grooved Ends
1 - 7 of 7 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

Size

A

B

C

Effective Area

Spring Rate

GIL04G0200 N/A 2 N/A 60-5/8 in N/A 5-1/2 in N/A 6-1/2 in N/A 13.2 in² N/A 92 lb/in
GIL04G0250 N/A 2 1/2 N/A 58-7/8 in N/A 5-1/2 in N/A 7-1/2 in N/A 13.2 in² N/A 92 lb/in
GIL04G0300 N/A 3 N/A 64-5/8 in N/A 6-1/2 in N/A 7-1/2 in N/A 20.8 in² N/A 172 lb/in
GIL04G0400 N/A 4 N/A 64-3/8 in N/A 8-1/2 in N/A 9-1/2 in N/A 36.0 in² N/A 103 lb/in
GIL04G0500 N/A 5 N/A 68-3/4 in N/A 10-3/4 in N/A 9-1/2 in N/A 46.4 in² N/A 120 lb/in
GIL04G0600 N/A 6 N/A 74-5/8 in N/A 12-3/4 in N/A 11-3/4 in N/A 58.9 in² N/A 138 lb/in
GIL04G0800 N/A 8 N/A 79-3/4 in N/A 14 in N/A 13-3/4 in N/A 88.8 in² N/A 166 lb/in
